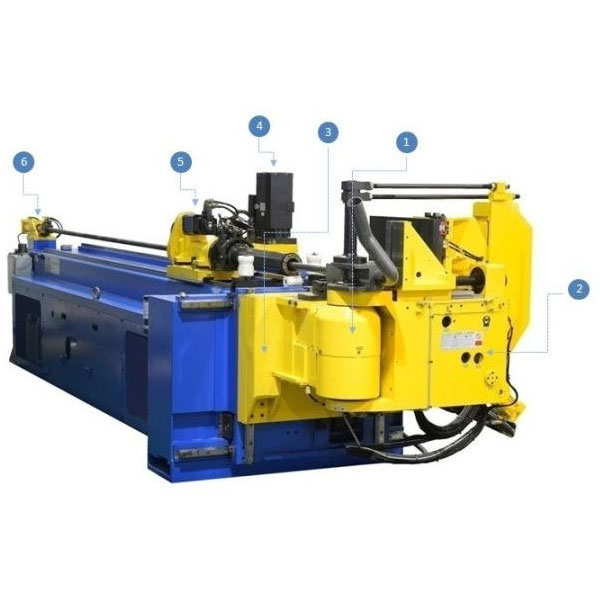

CNC Electric Hybrid MBE / MRE Tube Bending Machine

– Bend-arm (C-axis) by servo motor with exclusive transmission gears. Tolerance within ± 0.01″
– clamp die by hydraulic
– pressure die by hydraulic
– side booster by hydraulic
– Tools/radii shifting: Motion up-down & left-right by servo motor
– Carriage (Y-axis) by servo motor with programmable speed
– Collect (B-axis) grip by hydraulic, rotation by servo motor
– Mandrel by hydraulic with automatic lubrication & anticipated retraction

Industrial PC assorted with touch-screen display, capable of bending simulation, 3D preview and interference detection
Programmable speed for servo axes
With USB port, easy for data transfer
Convertible between manual / automatic mode
Convertible between inch / metric setting
Convertible between XYZ / YBC axes
Capable of reading igs/stp file
